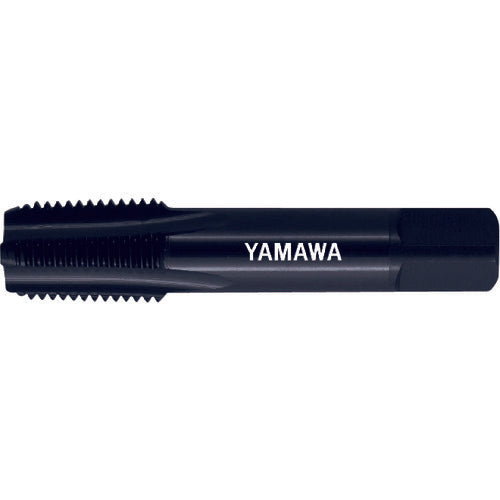

Yamawa Hand Tap for Pipe Taper Threads, Low Carbon Steel, Short Thread Type, LC-S-PT 1/8-28 LC-S-PT-1/8-28 1 Piece

Catalog number: LC-S-PT-1/8-28 Features: ●Short thread tap suitable for threading of mild steel (low carbon steel) such as SS400 and S25C. Applications: ●Workpiece: Low carbon steel, cast steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/8 ●Number of threads: 28 ●Thread length (mm): 16.5 ●Total length (mm): 55 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Pilot hole diameter (mm): 8.1 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Oxidation treatment ●Length to reference diameter (mm): 10.5 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 9mm Material/Finish: ●High speed tool steel (HSS)
