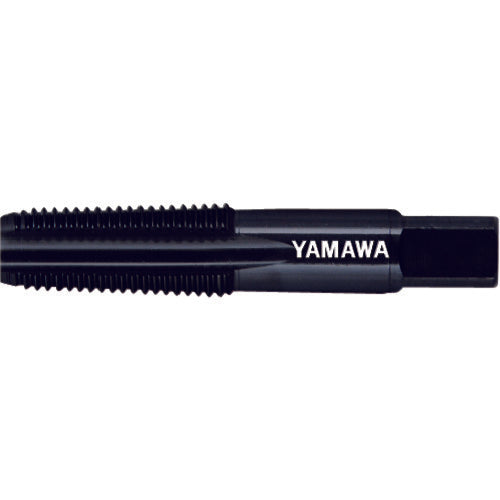

Yamawa Hand Tap for Pipe Taper Threads, Low Carbon Steel, Long Thread Type, LC-PT 3/4-14 LC-PT-3/4-14 1 Piece

Catalog number: LC-PT-3/4-14 Features: ●This tap is suitable for threading mild steel (low carbon steel) such as SS400 and S29C. Applications: ●Workpiece: Low carbon steel, cast steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 3/4 ●Number of threads: 14 ●Thread length (mm): 35 ●Total length (mm): 85 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 23.0 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Oxidation treatment ●Length to reference diameter (mm): 25 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 20mm Material/Finish: ●High speed tool steel (HSS)
