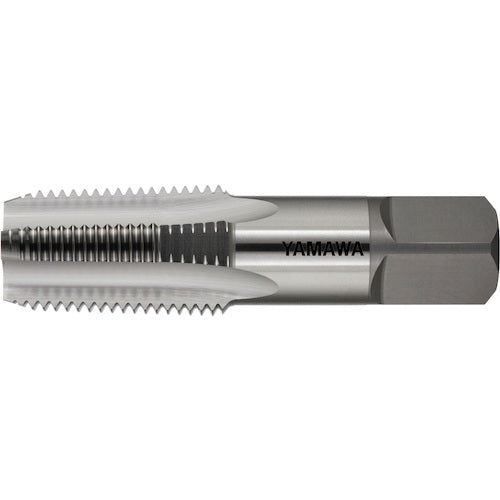

Yamawa Taper Pipe Thread Relief Hand Tap Long Thread Type TC-PT 3/4-14 TC-PT-3/4-14 1 Piece

Catalog number: TC-PT-3/4-14 Features: ●The position of the reference diameter can be seen at a glance. Applications: ●Cutting materials: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, tool steel, cast steel, cast iron, tough cast iron, brass, brass castings, aluminum rolled materials, aluminum alloy castings, zinc alloy castings. Specifications: ●Precision: JIS Class 2 ●Nominal size: 3/4 ●Number of threads: 14 ●Thread length (mm): 35 ●Total length (mm): 85 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pre-drilled hole diameter (mm): 23.0 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 threads ●Surface treatment: Non-coated ●Length to reference diameter (mm): 25 ●Length of shank square section (mm): 20 ●Number of grooves: 4 Material/Finish: ●High-speed tool steel (HSS)
