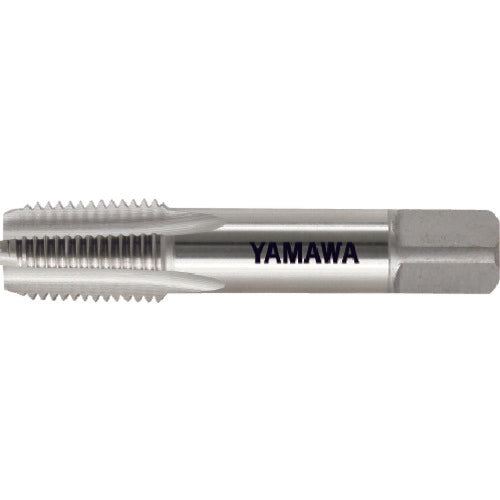

Yamawa Hand Tap for Cast Iron and Pipe Taper Threads, Short Thread Type, FC-S-PT 3/4-14 FC-S-PT-3/4-14 1 Piece

Catalog number: FC-S-PT-3/4-14 Features: ●Short thread tap suitable for threading hard and brittle materials such as cast iron. Applications: ●Workpiece: Cast iron, tough cast iron. Specifications: ●Precision: JIS Class 2 ●Nominal size: 3/4 ●Number of threads: 14 ●Thread length (mm): 29 ●Total length (mm): 85 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 23.0 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 ●Surface treatment: Nitriding ●Length to reference diameter (mm): 19 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 20mm Material/Finish: ●High-speed tool steel (HSS)
