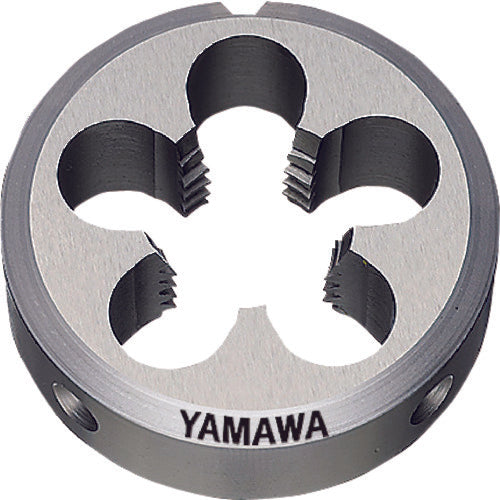

Yamawa Solid Die for Parallel Pipe Threads D PF 3/8-19 50 Diameter D-PF-3/8-19-50 1 pc

Catalog number: D-PF-3/8-19-50 Features: ●Solid die for PF male thread processing with improved die runout accuracy. Applications: ●Workpiece: Carbon steel, aluminum, brass. Specifications: ●Nominal size: 3/8 ●Number of threads: 19 ●Outer diameter (mm): 50 ●Thickness (mm): 16 ●Thread processing: Parallel pipe thread ●Thread processing: Parallel pipe thread ●Number of chip holes: 5 ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS) Caution: ●Cannot be used with stainless steel screws.
