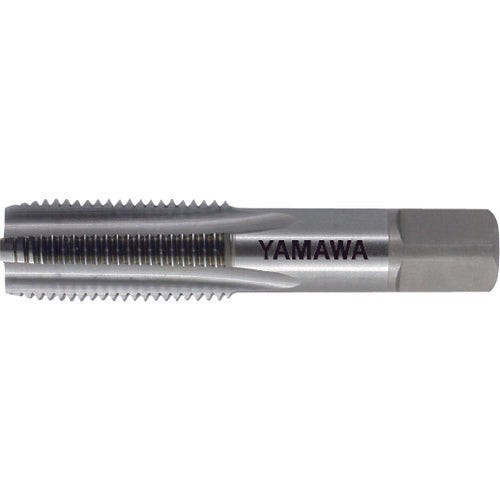

Yamawa Cast Iron Hand Tap for Parallel Pipe Threads FC-PF 2-11 FC-PF-2-11 1 Piece

Catalog number: FC-PF-2-11 Features: ●A tap suitable for threading hard and brittle materials such as cast iron. Applications: ●Workpiece: Cast iron, tough cast iron. Specifications: ●Precision: JIS Class 2 ●Nominal size: 2 ●Number of threads: 11 ●Thread length (mm): 50 ●Total length (mm): 120 ●Shank diameter (mm): 46 ●Shank square section (mm): 35 ●Pilot hole diameter (mm): 57.1 ●Machined thread: Parallel pipe thread ●Number of engagement threads: 3.5 ●Surface treatment: Nitriding ●Number of grooves: 6 grooves ●Number of grooves: 6 ●Length of shank square section: 38mm Material/Finish: ●High-speed tool steel (HSS)
