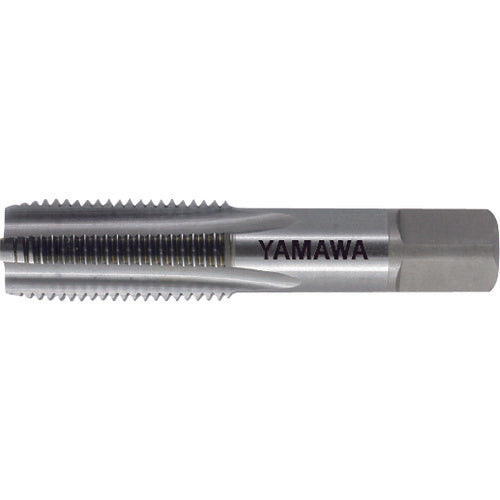

Yamawa Cast Iron Hand Tap for Parallel Pipe Threads FC-PF 3/4-14 FC-PF-3/4-14 1 Piece

Catalog number: FC-PF-3/4-14 Features: ●A tap suitable for threading hard and brittle materials such as cast iron. Applications: ●Workpiece: Cast iron, tough cast iron. Specifications: ●Precision: JIS Class 2 ●Nominal size: 3/4 ●Number of threads: 14 ●Thread length (mm): 35 ●Total length (mm): 85 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 24.5 ●Machined thread: Parallel pipe thread ●Number of engagement threads: 3.5 ●Surface treatment: Nitriding ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 20mm Material/Finish: ●High-speed tool steel (HSS)
