（株）弥満和製作所

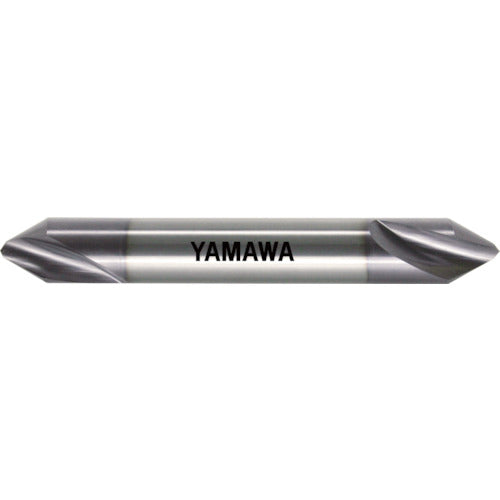

Yamawa Carbide Point Drill PE-60° C-PE-SV 10X3X60° C-PE-SV-10X3 1 piece
Yamawa Carbide Point Drill PE-60° C-PE-SV 10X3X60° C-PE-SV-10X3 1 piece
Regular price
¥30,730
Regular price
Sale price
¥30,730
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: C-PE-SV-10X3 Features: ●The two-stage flat shape provides good bite, resulting in high machining accuracy. ●This point drill allows for simultaneous combined machining of positioning (tip angle 125°) and chamfering (90°). Specifications: ●Shank diameter (mm): 10 ●Total length (mm): 75 ●Center hole angle (°): 60 ●Tip diameter (mm): 3 ●Surface treatment: TiAIN ●Point length (mm): 0.78 ●Surface treatment: TiAIN coating Material/Finish: ●Ultrafine grain carbide alloy (HF)
