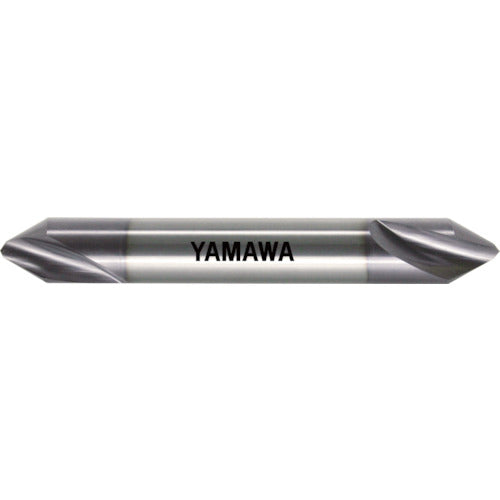

Yamawa Carbide Point Drill PE-60° C-PE-SV 6X2X60° C-PE-SV-6X2 1 piece
Yamawa Carbide Point Drill PE-60° C-PE-SV 6X2X60° C-PE-SV-6X2 1 piece
Regular price
¥17,345
Regular price
Sale price
¥17,345
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: C-PE-SV-6X2 Features: ●The two-stage flat shape provides good bite, resulting in high machining accuracy. ●This point drill allows for simultaneous combined machining of positioning (tip angle 125°) and chamfering (90°). Specifications: ●Shank diameter (mm): 6 ●Total length (mm): 55 ●Center hole angle (°): 60 ●Tip diameter (mm): 2 ●Surface treatment: TiAIN ●Point length (mm): 0.52 ●Surface treatment: TiAIN coating ●Blade shape: Double-edged Material/Finish: ●Ultra-fine grain carbide alloy (HF)
