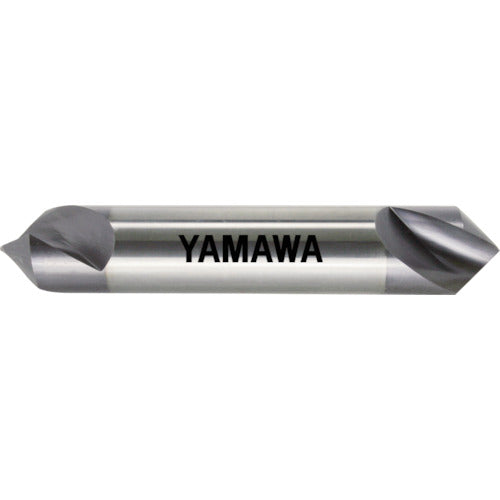

Yamawa Carbide Point Drill PE-90° C-PE-Q V 6X2X90° C-PE-QV-6X2 1 piece

Catalog number: C-PE-QV-6X2 Features: ●The two-stage flat shape provides good bite, resulting in high machining accuracy. ●This point drill allows for simultaneous combined machining of positioning (tip angle 125°) and chamfering (90°). Specifications: ●Shank diameter (mm): 6 ●Total length (mm): 55 ●Center hole angle (°): 90 ●Tip diameter (mm): 2 ●Surface treatment: TiAIN ●Point length (mm): 0.52 ●Surface treatment: TiAIN coating Material/Finish: ●Ultrafine grain carbide alloy (HF)
