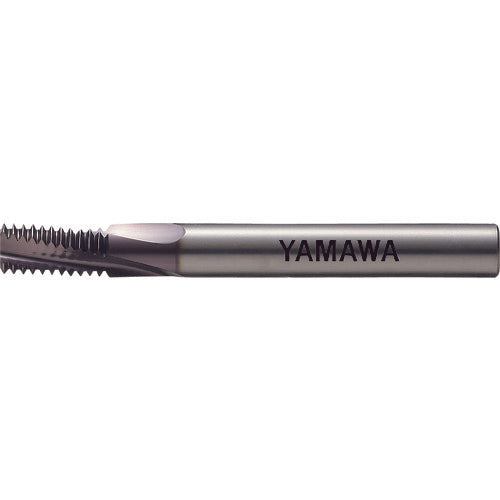

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 035083N080M MC-CSLC-035083N080M 1 Piece

Catalog number: MC-CSLC-035083N080M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Can process both right-handed and left-handed female threads. ● Can be used for a wide range of work materials, including aluminum, aluminum alloys, copper, copper alloys, cast iron, stainless steel, tool steel, alloy steel, carbon steel, and tempered steel. ● Stable processing is achieved by using ultra-fine particle carbide alloy material with consideration for wear resistance and special coating. ● Can process female threads with few incomplete threads. ● Spiral grooves are used to reduce processing torque. Specifications: ●Nominal size: 035083N080M ●Pitch (mm): 0.8 ●Blade diameter (mm): 3.5 ●Blade length (mm): 8 ●Total length (mm): 50 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Surface treatment: TiAlN coating ●Minimum machining internal thread (Dmin): 5 ●Thread type: Metric thread ●Thread type: Metric thread Material/Finish: ●Ultra-fine grain carbide alloy (HF)
