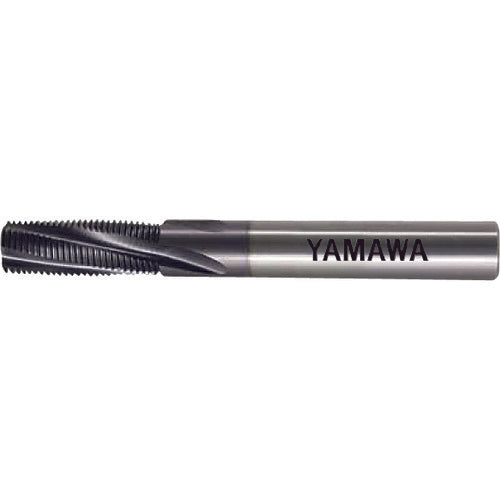

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 080203N050M MC-CSLC-080203N050M 1 Piece

Catalog number: MC-CSLC-080203N050M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. ● Can be used for a wide range of work materials, including aluminum, aluminum alloys, copper, copper alloys, cast iron, stainless steel, tool steel, alloy steel, carbon steel, and tempered steel. ● Stable processing is achieved by using ultra-fine particle carbide alloy material with consideration for wear resistance and a special coating. ● Can process female threads with few incomplete threads. ● Spiral grooves are used to reduce processing torque. Specifications: ●Nominal size: 080203N050M ●Pitch (mm): 0.5 ●Blade diameter (mm): 8 ●Blade length (mm): 20 ●Total length (mm): 70 ●Number of blades (pieces): 3 ●Shank diameter (mm): 8 ●Surface treatment: TiAlN coating ●Minimum machining internal thread (Dmin): 12 ●Thread type: Metric thread ●Thread type: Metric thread Material/Finish: ●Ultrafine grain carbide alloy (HF)
