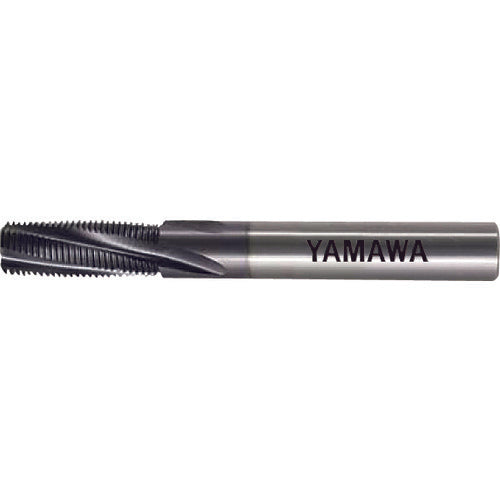

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 160404N250M MC-CSLC-160404N250M 1 Piece

Catalog number: MC-CSLC-160404N250M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 23 ● Pitch (mm): 2.5 ● Blade diameter (mm): 16 ● Blade length (mm): 40 ● Overall length (mm): 110 ● Shank diameter (mm): 16 ● Minimum processing diameter: 23 ● Processing thread: Metric thread ● Thread length (mm): 40 Material/Finish: ● Ultra-fine particle carbide alloy (HF)
