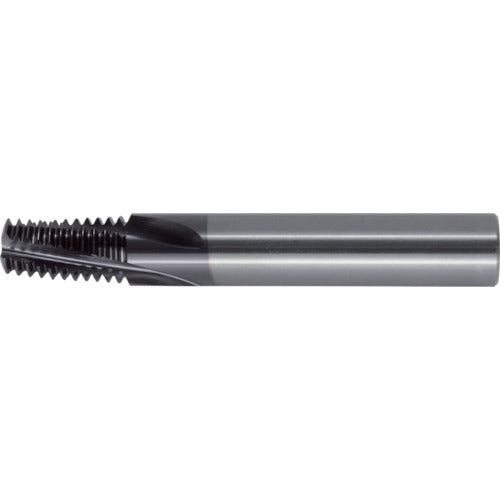

Yamawa Carbide MC-Helical Cutter for Pipe Taper Threads (Rc/PT) MC-CSLC 120204X14R MC-CSLC-120204X14R 1 Piece

Catalog number: MC-CSLC-120204X14R Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 1/2, 3/4 ● Pitch (mm): 1.81 ● Number of teeth: 14 ● Blade diameter (mm): 12 ● Blade length (mm): 20 ● Total length (mm): 80 ● Number of blades (pieces): 4 ● Shank diameter (mm): 12 ● Minimum processing diameter: 1/2, 3/4 ● Processing thread: Pipe taper thread (Rc, PT) ● Thread length (mm): 20 Material/Finish: ● Ultra-fine particle cemented carbide (HF)
