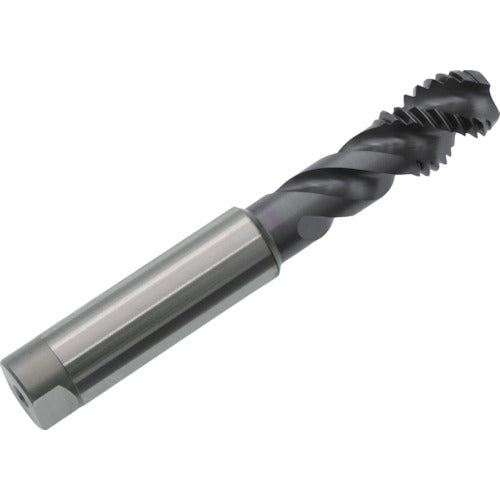

Yamawa Ultra High Speed ​​Aluminum Spiral Tap HFAHS P4 M10X1.5 HFAHS-M10X1.5 1 piece

Catalog number: HFAHS-M10X1.5 Features: ●Center through hole shape allows for ultra-high speed machining and supports internal lubrication. ●Strongly twisted spiral shape makes this tap ideal for blind holes and vertical machining of aluminum castings. Applications: ●For blind hole machining. ●Workpiece: rolled aluminum, aluminum alloy casting, magnesium alloy casting, zinc alloy casting. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M10 ●Pitch (mm): 1.5 ●Thread length (mm): 13 ●Total length (mm): 75 ●Shank diameter (mm): 10 ●Pit ​​hole diameter (mm): 8.60 ●Number of teeth: 2.5 teeth ●Machining thread: Metric thread ●Surface treatment: TiCN coating ●Number of grooves: 3 ●For use with fully synchronized lead feed machines
