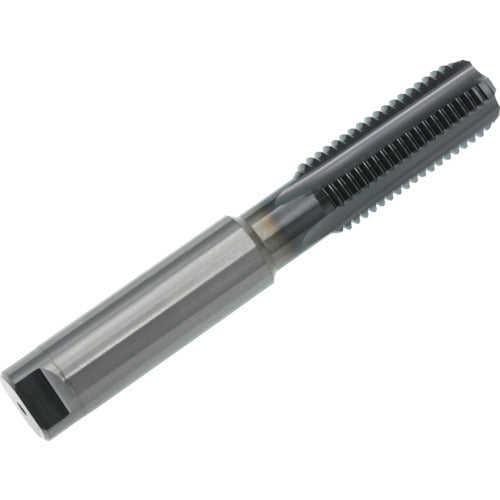

Yamawa Ultra-High Speed ​​Cast Iron Blind Hole Carbide Hand Tap HFICT-B P3 M10X1.25 HFICT-B-P3-M10X1.25 1 Piece

Catalog number: HFICT-B-P3-M10X1.25 Features: ● Carbide taps capable of ultra-high speed machining, with a center through hole shape compatible with internal lubrication, mist method, and low-temperature cooling dry machining method, making them suitable for blind holes in castings, etc. Applications: ● Workpiece: Cast iron, tough cast iron. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 24 ● Total length (mm): 75 ● Shank diameter (mm): 10 ● Pilot hole diameter (mm): 8.85 ● Machining thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 4 ● Number of engagement teeth: 2.5 teeth Material/Finish: ● Ultra-fine grain carbide alloy (HF)
