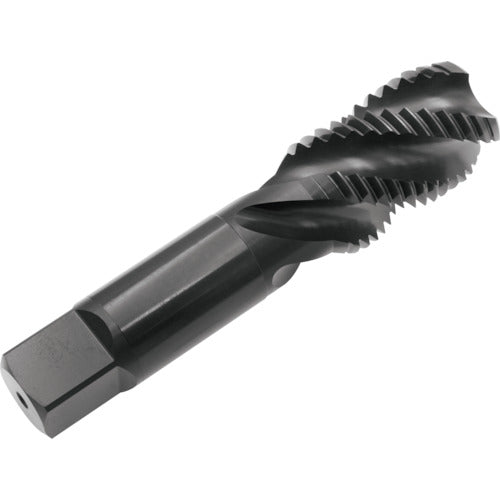

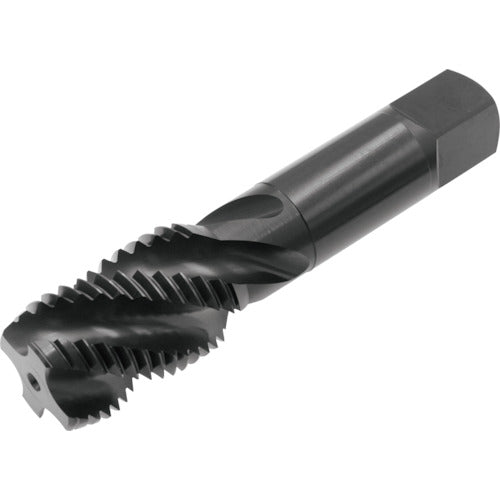

Yamawa Oxidation Treatment Spiral Tap SP OX P3 3/4-10UNC SP-OX-P3-3/4-10UNC 1 piece

Catalog number: SP-OX-P3-3/4-10UNC Features: ● A spiral tap for blind hole machining with an oxidation treatment applied to the surface of the thread to prevent welding. ● Suitable for thread machining of soft steel materials such as low carbon steel that are prone to welding. Applications: ● For blind hole machining. ● Work material: low carbon steel, medium carbon steel. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: UNC3/4 ● Pitch (mm): 2.54 ● Thread length (mm): 33 ● Total length (mm): 105 ● Shank diameter (mm): 15 ● Shank square section (mm): 12 ● Pilot hole diameter (mm): 16.7 ● Number of threads: 10 ● Number of engaging threads: 2.5 threads ● Machined thread: Unified thread ● Surface treatment: Oxidation treatment ● Number of grooves: 4 ● Oxidation treatment spiral tap Material/Finish: ● High speed tool steel (HSS)
