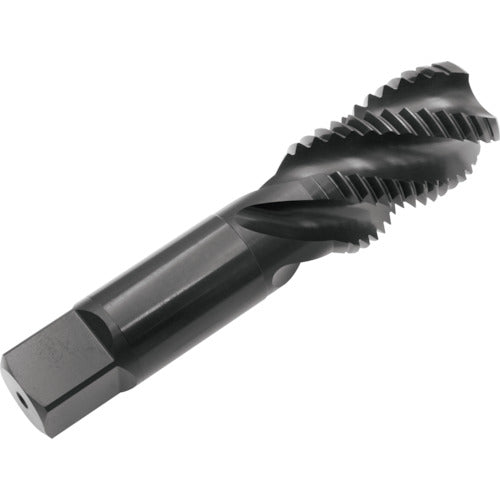

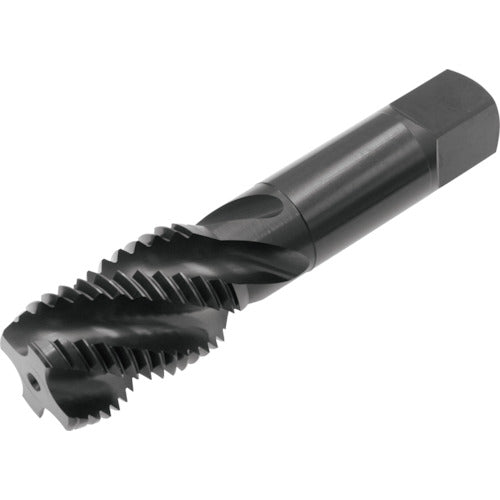

Catalog number: SP-OX-P3-M22X1.5 Features: ● A spiral tap for blind hole machining with oxidation treatment on the surface of the thread to prevent welding. ● Suitable for thread machining of soft steel materials such as low carbon steel that are easily welded. Applications: ● For blind hole machining. ● Work material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal size: M22 ● Pitch (mm): 1.5 ● Thread length (mm): 33 ● Total length (mm): 115 ● Shank diameter (mm): 17 ● Shank square section (mm): 13 ● Pilot hole diameter (mm): 20.6 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 4 Material/Finish: ● High speed tool steel (HSS)
