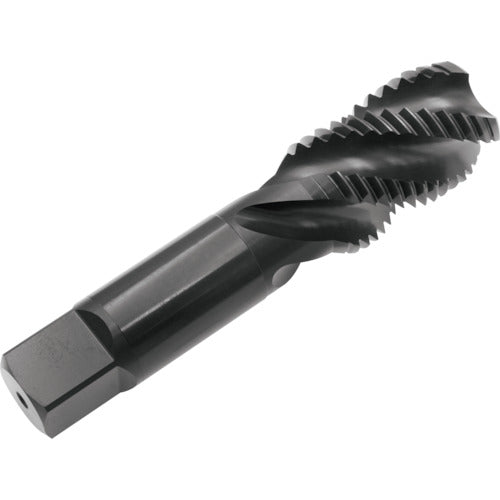

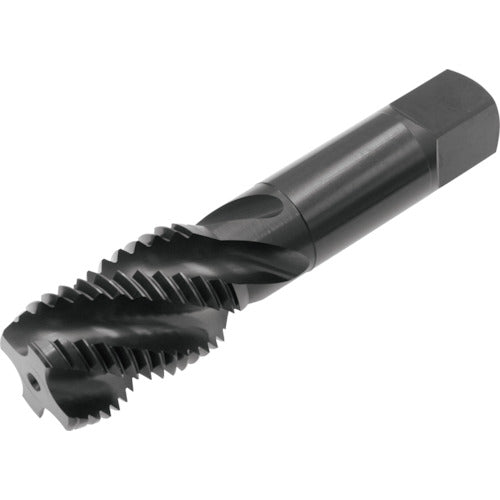

Yamawa Oxidized Spiral Tap SP OX P4 M36X4 SP-OX-P4-M36X4 1 piece

Catalog number: SP-OX-P4-M36X4 Features: ● A spiral tap for blind hole machining with an oxidation treatment applied to the surface of the thread to prevent welding. ● Suitable for thread machining of soft steel materials such as low carbon steel that are easily welded. Applications: ● For blind hole machining. ● Workpiece material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: M36 ● Pitch (mm): 4 ● Thread length (mm): 52 ● Overall length (mm): 155 ● Shank diameter (mm): 28 ● Shank square section (mm): 21 ● Pilot hole diameter (mm): 32.1 ● Number of engaging threads: 2.5 threads ● Machining thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 4 ● Oxidation treatment spiral tap Material / Finish: ● High speed tool steel (HSS)
