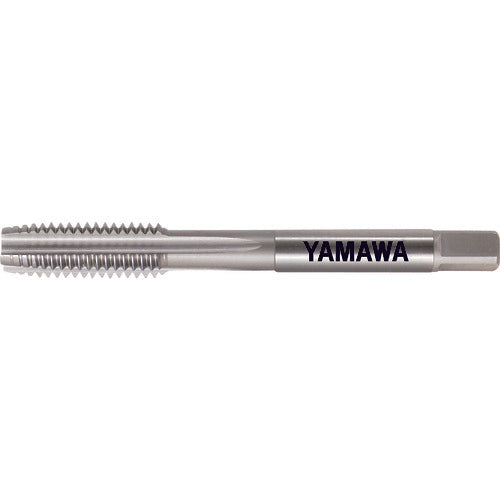

Yamawa Cast Iron Hand Tap FC-HT P5 M22X2.5 5P FC-HT-P5-M22X2.5-5P 1 piece

Catalog number: FC-HT-P5-M22X2.5-5P Features: ●Suitable for thread machining of hard and brittle materials such as cast iron, and since it wears relatively quickly, it is oversized by an appropriate amount. Applications: ●Workpiece: Cast iron, tough cast iron. Specifications: ●Tip: Medium ●Accuracy: P5 ●Accuracy notation: P class ●Nominal size: M22 ●Pitch (mm): 2.5 ●Thread length (mm): 33 ●Total length (mm): 115 ●Shank diameter (mm): 17 ●Shank square section (mm): 13 ●Pilot hole diameter (mm): 19.60 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 ●Number of engaging threads: 5 ●Number of engaging threads: 5 ●Shank length (mm): 55 ●Length of shank square section (mm): 16 Material/Finish: ●High-speed tool steel (HSS)
