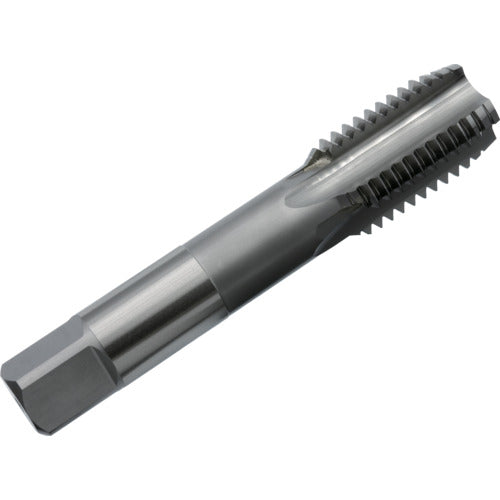

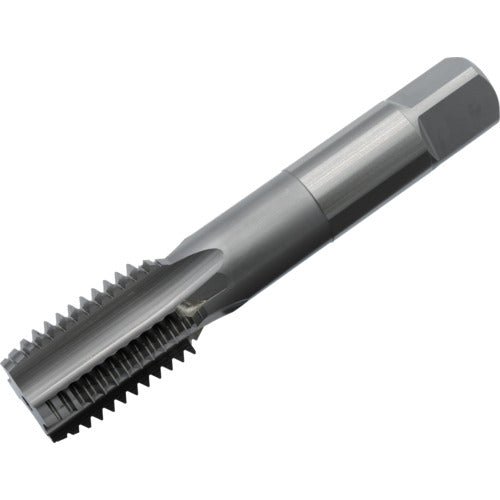

Yamawa Super Hard Hand Tap for Cast Iron N-CT FC P4 3/4-10UNC 3P N-CT-FC-P4-3/4-10UNC-3P 1 piece

Catalog number: N-CT-FC-P4-3/4-10UNC-3P Features: ● Carbide tap suitable for mass-produced thread machining of hard, brittle materials such as cast iron. Applications: ● Workpiece: Cast iron, tough cast iron, brass castings. Specifications: ● Tip: Medium ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: UNC3/4 ● Thread length (mm): 35 ● Overall length (mm): 105 ● Shank diameter (mm): 14 ● Shank square section (mm): 11 ● Pilot hole diameter (mm): 16.7 ● Number of threads: 10 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 3 Material/Finish: ● Ultra-fine grain carbide alloy (HF)
