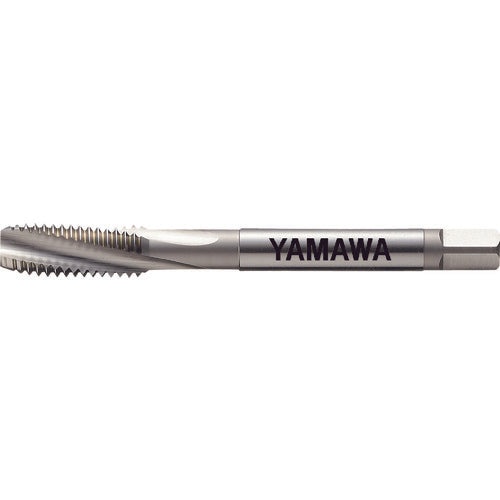

Yamawa Spiral Tap for Hard-to-Cut Materials PM-SP P3 M12X1.5 PM-SP-P3-M12X1.5 1 Piece

Catalog number: PM-SP-P3-M12X1.5 Features: ●Spiral tap for high-hardness steel materials with hardness of 35 to 45 HRC, such as forged products, tempered materials, and mold materials made of high carbon steel and alloy steel. Applications: ●For blind hole processing. ●Workpiece material: High carbon steel, tempered steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal size: M12 ●Pitch (mm): 1.5 ●Thread length (mm): 26 ●Total length (mm): 82 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.60 ●Number of engagement threads: 2.75 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Number of grooves: 3 ●Shank length: 42mm ●Length of shank square section: 9mm Material/Finish: ●High-speed tool steel (HSS-P)
