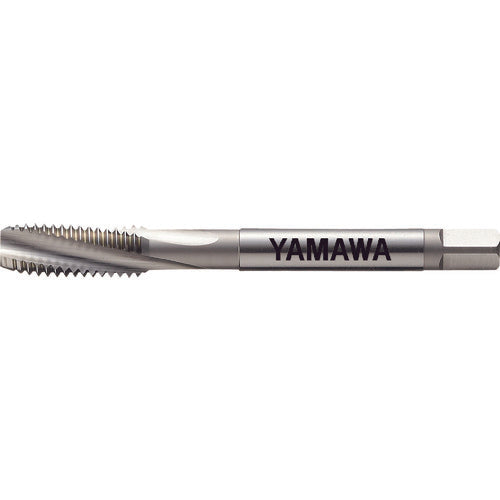

Yamawa Spiral Tap for Hard-to-Cut Materials PM-SP P3 M6X1 PM-SP-P3-M6X1 1 piece

Catalog number: PM-SP-P3-M6X1 Features: *Spiral tap for high-hardness steel materials with hardness of 35 to 45 HRC, such as forged products, tempered materials, and mold materials made of high carbon steel and alloy steel. Applications: *For blind hole machining. *Work material: For high carbon steel and tempered steel. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M6 ● Pitch (mm): 1 ● Thread length (mm): 15 ● Total length (mm): 62 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 5.09 ● Number of engagement threads: 2.75 threads ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Neck length (mm): 26 ● Shank length (mm): 33 ● Length of square shank section (mm): 7 ● Number of grooves: 3 ● Shank length: 33mm ● Length of square shank section: 7mm ● Neck length: 26mm Material/Finish: ● High-speed tool steel (HSS-P)
