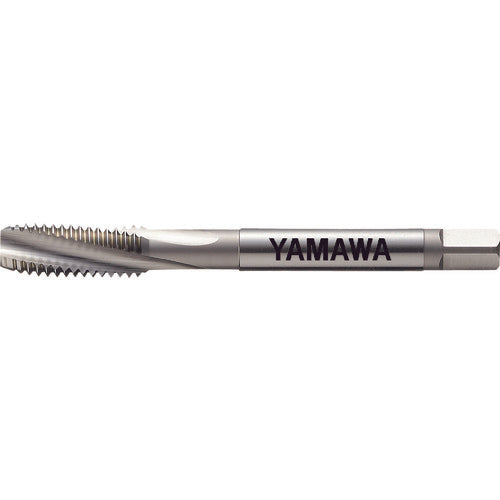

Yamawa Spiral Tap for Hard-to-Cut Materials PM-SP P4 M14X2 PM-SP-P4-M14X2 1 piece

Catalog number: PM-SP-P4-M14X2 Features: ●Spiral taps for high-hardness steel materials with hardness of 35 to 45 HRC, such as forged products, tempered materials, and mold materials made of high carbon steel and alloy steel. Applications: ●For blind hole processing. ●Workpiece material: High carbon steel, tempered steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M14 ●Pitch (mm): 2 ●Thread length (mm): 26 ●Total length (mm): 88 ●Shank square section (mm): 8 ●Pilot hole diameter (mm): 12.1 ●Number of engagement threads: 2.75 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Number of grooves: 3 ●Shank length: 45 mm ●Length of shank square section: 11 mm Material/Finish: ●High-speed tool steel (HSS-P)
