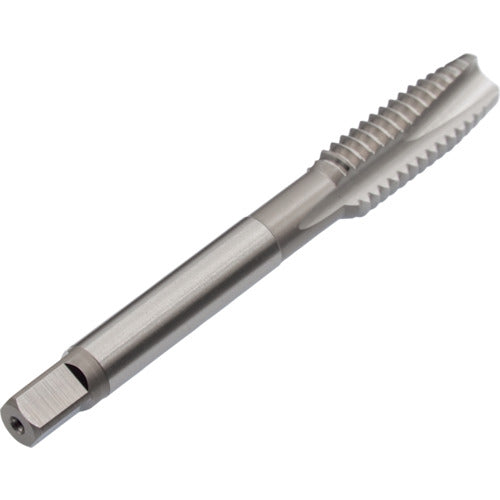

Yamawa Point Tap for Hard-to-Cut Materials PM-PO P3 M5X0.8 PM-PO-P3-M5X0.8 1 Piece

Catalog number: PM-PO-P3-M5X0.8 Features: ●Point tap suitable for through hole machining of high hardness steel materials with hardness of 35 to 45 HRC, such as forged products, tempered materials, and mold materials made of high carbon steel and alloy steel. Applications: ●For through hole machining. ●Workpiece material: For high carbon steel, tempered steel (25 to 35 HRC), tempered steel (35 to 45 HRC). Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M5 ● Pitch (mm): 0.8 ● Thread length (mm): 13 ● Total length (mm): 60 ● Shank diameter (mm): 5.5 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 4.28 ● Number of engagement threads: 5.5 threads ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Neck length (mm): 22 ● Shank length: 33mm ● Length of square shank section: 7mm Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
