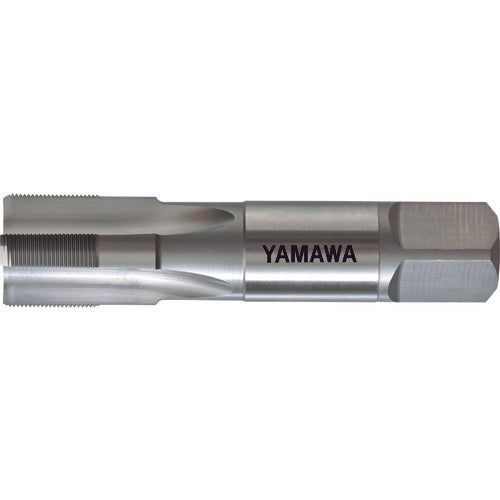

Yamawa Microscope Objective Lens Hand Tap HT MST 20.32W36 1.5P HT-MST-20.32W36-1.5P 1 Piece

Catalog number: HT-MST-20.32W36-1.5P Features: ● Tap for microscope objective lenses. Applications: ● For blind hole processing. ● Workpiece: Brass. Specifications: ● Tip: Top ● Nominal dimensions: W20.32 ● Thread length (mm): 16 ● Overall length (mm): 87 ● Shank diameter (mm): 18 ● Square shank section (mm): 14 ● Pilot hole diameter (mm): 19.53 ● Number of threads: 36 ● Machining thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5 threads ● Number of engaging threads: 1.5 threads ● Shank length (mm): 44 ● Length of square shank section (mm): 17 Material/Finish: ● High-speed tool steel (HSS)
