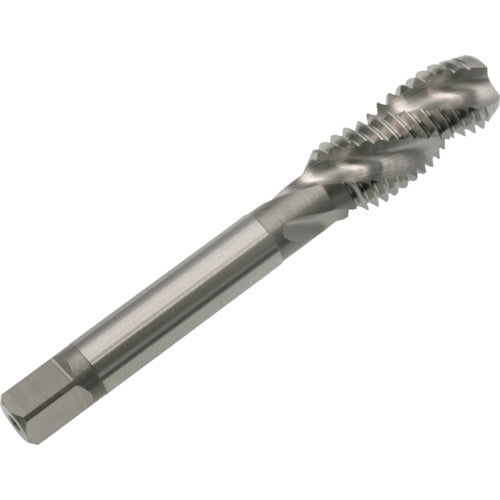

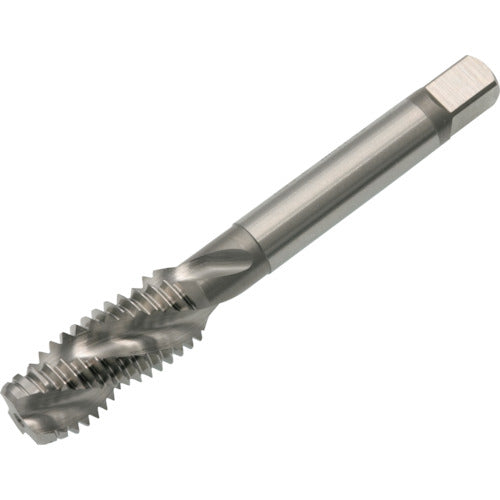

Yamawa High Carbon Steel Spiral Tap HC-SP P3 5/8W11 HC-SP-P3-5/8W11 1 piece

Catalog number: HC-SP-P3-5/8W11 Features: ●Spiral tap suitable for threading high carbon steel such as S55C. Applications: ●For blind hole processing. ●Work material: medium carbon steel, high carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: W5/8 ●Thread length (mm): 26 ●Total length (mm): 95 ●Shank diameter (mm): 12.5 ●Shank square section (mm): 10 ●Pilot hole diameter (mm): 13.68 ●Number of threads: 11 ●Number of engaging threads: 2.5 threads ●Machined thread: Whitworth thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High-speed tool steel (HSS)
