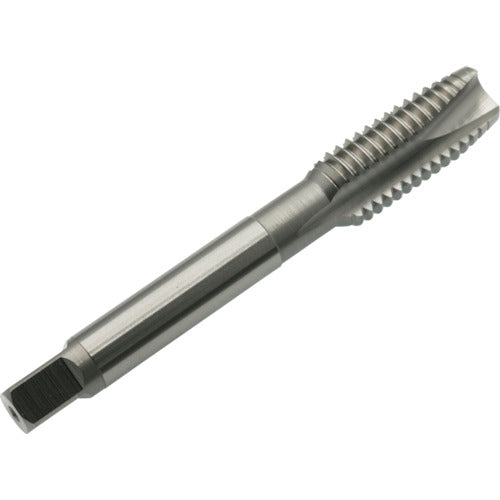

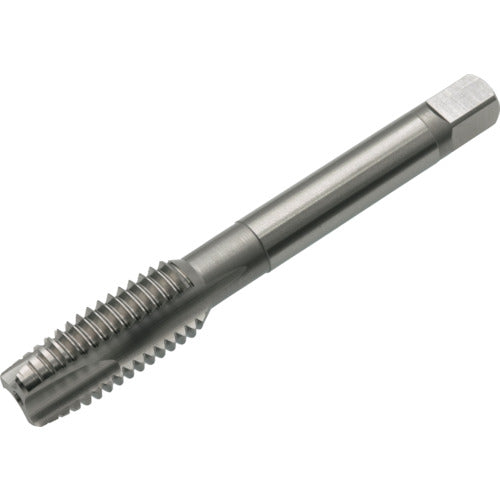

Yamawa High Carbon Steel Point Tap HC-PO P4 M12X1.25 HC-PO-P4-M12X1.25 1 piece

Catalog number: HC-PO-P4-M12X1.25 Features: ●Point tap suitable for threading high carbon steel such as S55C with medium to high hardness up to 30HRC. Applications: ●For through hole processing. ●Workpiece: Medium carbon steel, high carbon steel, tempered steel (25-35HRC). Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M12 ●Pitch (mm): 1.25 ●Thread length (mm): 26 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.85 ●Number of engagement threads: 5 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Shank length: 42mm ●Shank square section length: 9mm Material/Finish: ●High speed tool steel (HSS)
