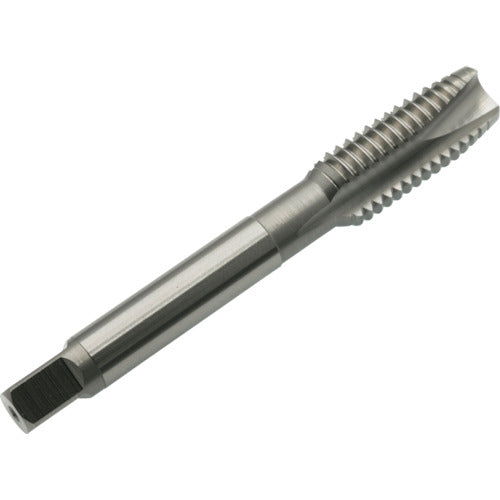

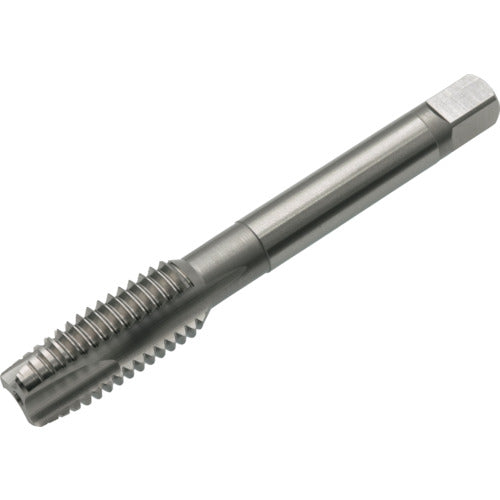

Yamawa High Carbon Steel Point Tap HC-PO P4 M16X2 HC-PO-P4-M16X2 1 piece

Catalog number: HC-PO-P4-M16X2 Features: ●Point tap suitable for threading high carbon steel such as S55C with medium to high hardness up to 30HRC. Applications: ●For through hole processing. ●Workpiece: Medium carbon steel, high carbon steel, tempered steel (25-35HRC). Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M16 ●Pitch (mm): 2 ●Thread length (mm): 26 ●Total length (mm): 95 ●Shank diameter (mm): 12.5 ●Shank square section (mm): 10 ●Pilot hole diameter (mm): 14.1 ●Number of engagement threads: 5 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Shank length: 48mm ●Shank square section length: 13mm Material/Finish: ●High speed tool steel (HSS)
