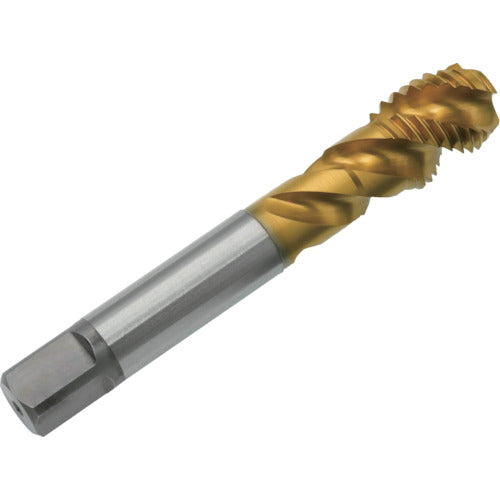

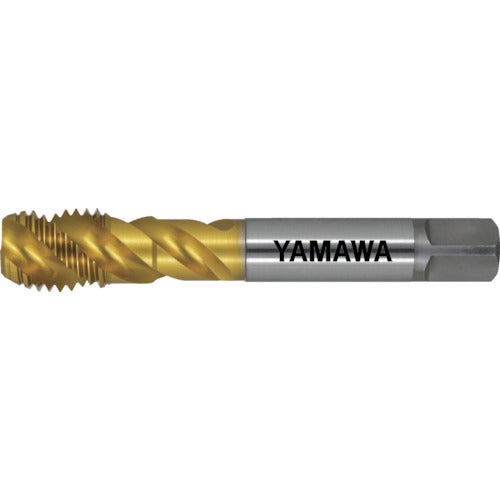

Catalog number: F-SP-M12 Features: ●For use only with machines equipped with a fully synchronized lead feed mechanism. ●High-speed threading at 15 to 25 m/min is possible. ●Use at low speeds can cause problems due to poor chip shape and discharge. Applications: ●For blind hole machining. ●Workpiece: carbon steel, alloy steel, aluminum alloy, zinc die casting. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M12 ●Pitch (mm): 1.75 ●Thread length (mm): 15 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.4 ●Number of engagement threads: 3 ●Machining thread: Metric thread ●Surface treatment: TiN coating ●Number of grooves: 3 ●Neck length (mm): 22 ●For use only with fully synchronized lead feed machines. Material/Finish: High speed tool steel (HSS) Caution: Do not use this tap on machines that are not equipped with a fully synchronized lead feed mechanism, as this will cause the thread to expand or break.
