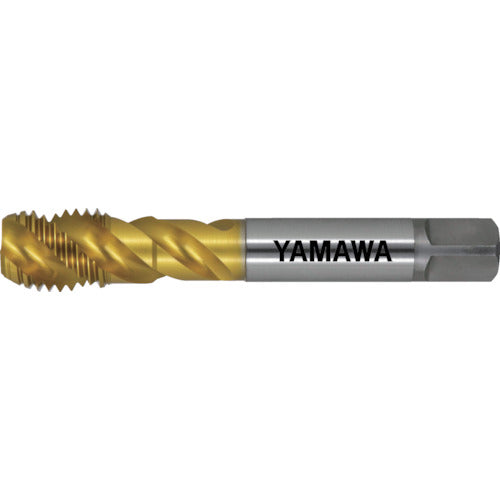

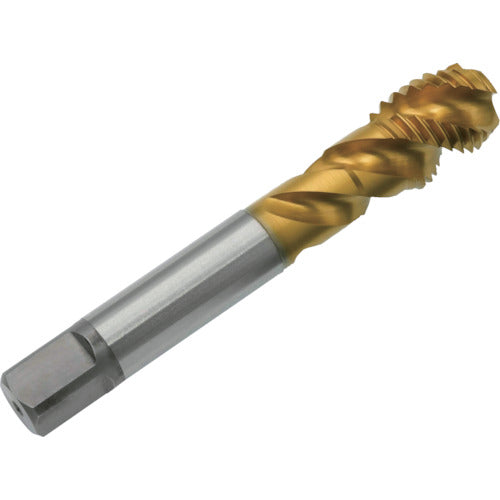

Yamawa High Speed ​​Spiral Tap F-SP P4 M16X2 F-SP-P4-M16X2 1 piece

Catalog number: F-SP-P4-M16X2 Features: ●High-speed machining is possible with a machine equipped with a fully synchronized lead feed mechanism. ●The unique groove shape and short length of the threaded section allow for good chip removal. ●Using at low speeds can result in poor chip shape and removal, which can lead to problems. Applications: ●For blind hole machining. ●Workpiece material: Low carbon steel, medium carbon steel. Specifications: ● Precision: P4 ● Precision notation: P grade ● Nominal size: M16 ● Pitch (mm): 2 ● Thread length (mm): 18 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Square shank section (mm): 10 ● Counterbore diameter (mm): 14.1 ● Number of engagement threads: 3 ● Machined thread: Metric thread ● Surface treatment: TiN coating ● Number of grooves: 3 ● For fully synchronous feed only ● Number of grooves: 3 ● Shank length: 48 mm ● Length of square shank section: 13 mm Material/Finish: ● High-speed tool steel (HSS)
