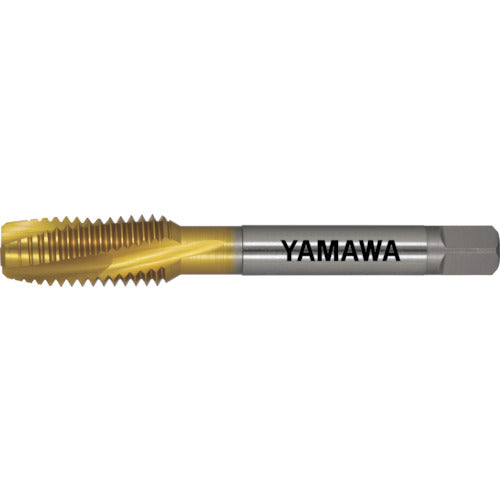

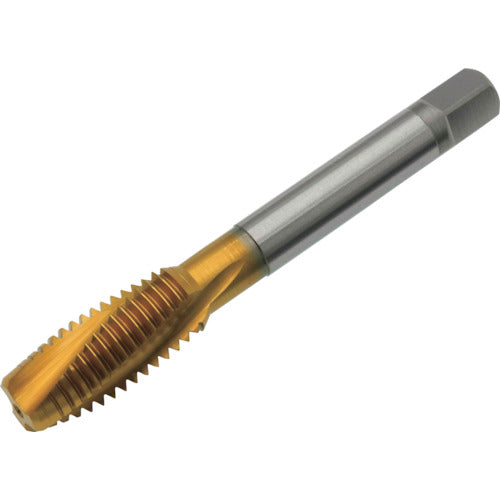

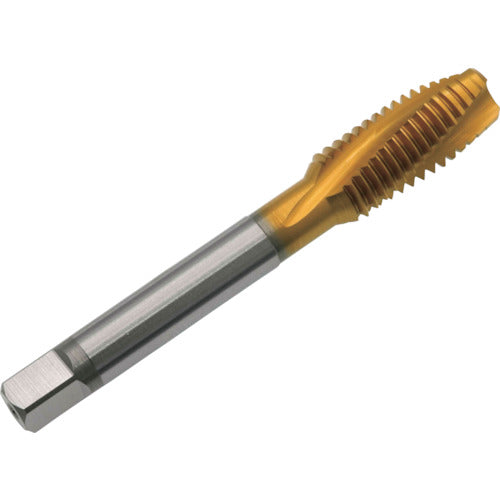

Catalog number: F-SL-M8 Features: ●For use with machines equipped with a fully synchronous lead feed mechanism. ●High-speed tapping at 20 to 30 m/min is possible. Applications: ●For through hole machining. ●Work material: low carbon steel, medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal size: M8 ●Pitch (mm): 1.25 ●Thread length (mm): 19 ●Total length (mm): 70 ●Shank diameter (mm): 6.2 ●Shank square section (mm): 5 ●Pit hole diameter (mm): 6.85 ●Number of engagement threads: 5 ●Machined thread: Metric thread ●Surface treatment: TiN coating ●Tap grade: P class ●For use with machines equipped with a fully synchronous lead feed mechanism Material/Finish: ●High-speed tool steel (HSS) Caution: ●Do not use this tap on machines that are not equipped with a fully synchronous lead feed mechanism, as it may cause the female thread to expand or break.
