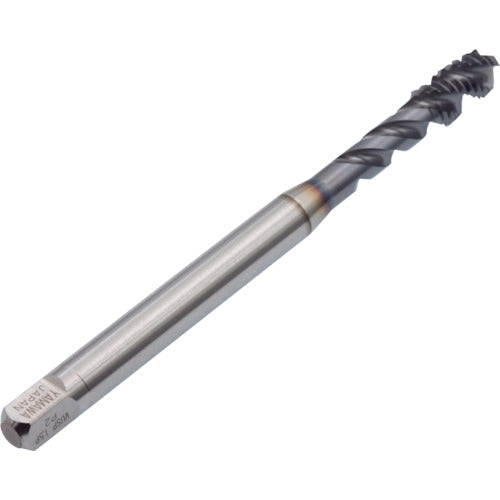

Yamawa Z-PRO Coated Spiral Tap VUSP 1.5P P2 M3X0.35 VUSP-1.5P-P2-M3X0.35 1 piece

Catalog number: VUSP-1.5P-P2-M3X0.35 Features: ●High-grade powder high-speed steel and special coating improve durability. ●The unique blade shape improves chip discharge and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang is ensured, preventing chip interference with the holder. ●Realizes good water-soluble cutting oil supply, making it ideal for water-soluble cutting oil processing. ●The length of the chamfer is 1.5P, making it ideal for blind hole processing where there is no room for pilot hole depth and effective thread length. Applications: ●For blind hole processing. ●For low carbon steel, medium carbon steel, high carbon steel, alloy steel, and stainless steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal size: M3 ● Pitch (mm): 0.35 ● Thread length (mm): 5 ● Total length (mm): 56 ● Shank diameter (mm): 4 ● Square shank section (mm): 3.2 ● Counterbore diameter (mm): 2.7 ● Number of engagement threads: 1.5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Neck length: 18 mm ● Shank length: 32 mm ● Length of square shank section: 6 mm ● Number of grooves: 3 Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
