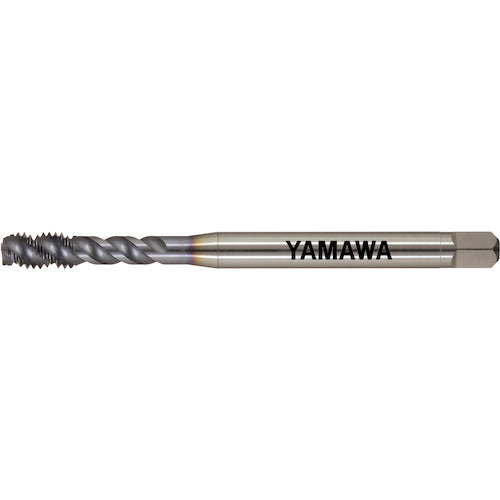

Yamawa Z-PRO Coated Spiral Tap VUSP L100 P2 M6X0.5 VUSP-100-P2-M6X0.5 1 piece

Catalog number: VUSP-100-P2-M6X0.5 Features: ●High-grade powder high-speed steel and special coating improve durability. ●The unique blade shape improves chip removal and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang is ensured, preventing chip interference with the holder. ●Proper water-soluble cutting oil supply is achieved, making it ideal for water-soluble cutting oil processing. Applications: ●For blind hole processing. ●Cutting materials: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal size: M6 ● Pitch (mm): 0.5 ● Thread length (mm): 8 ● Total length (mm): 100 ● Shank diameter (mm): 6 ● Shank square section (mm): 4.5 ● Counterbore diameter (mm): 5.56 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Neck length (mm): 30 ● Shank length (mm): 40 ● Length of shank square section (mm): 7 ● Number of grooves: 3 Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
