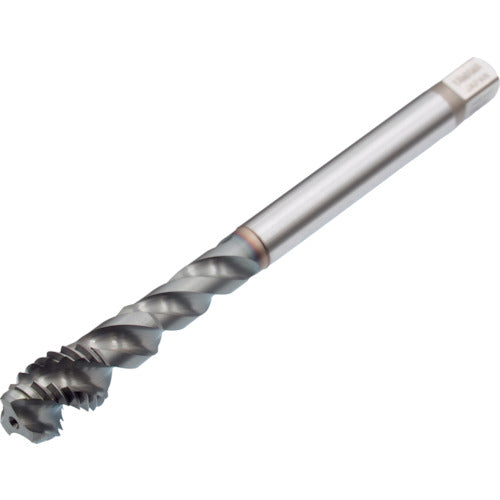

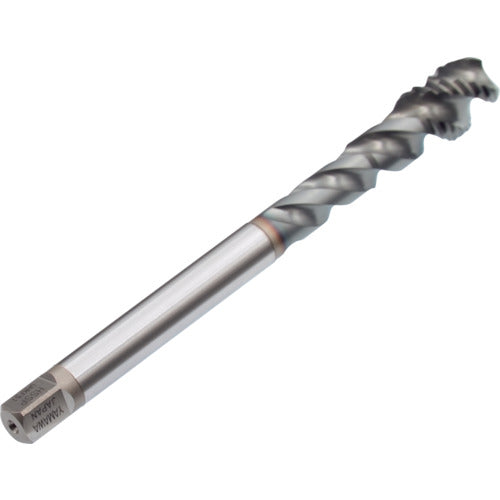

Yamawa Z-PRO Coated Spiral Tap VUSP P6 M14X2 VUSP-P6-M14X2+40 1 piece

Catalog number: VUSP-P6-M14X2+40 Features: ●High-grade powder high-speed steel and special coating improve durability. ●The unique blade shape improves chip discharge and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang is ensured, preventing chip interference with the holder. ●Realizes good water-soluble cutting oil supply, making it ideal for water-soluble cutting oil processing. Applications: ●For blind hole processing. ●Cutting materials: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel. Specifications: ● Precision: P6 ● Precision notation: P grade ● Nominal size: M14 ● Pitch (mm): 2 ● Thread length (mm): 18 ● Total length (mm): 110 ● Shank diameter (mm): 10.5 ● Square shank section (mm): 8 ● Counterbore diameter (mm): 12.1 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Number of grooves: 3 ● Shank length: 56 mm ● Length of square shank section: 11 mm Material/Finish: ● High-speed tool steel (HSS-P)
