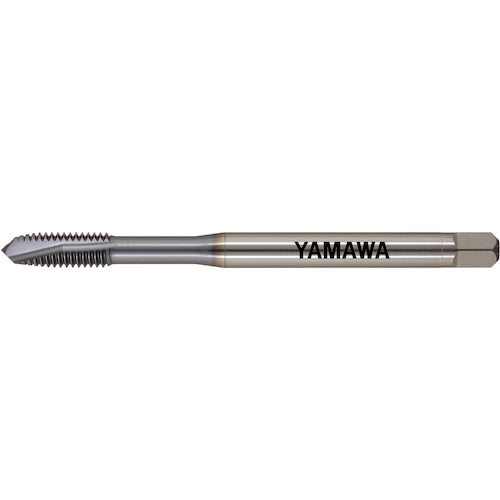

Yamawa Z-PRO Coated Point Tap VUPO L100 P2 M6X0.75 VUPO-100-P2-M6X0.75 1 piece

Catalog number: VUPO-100-P2-M6X0.75 Features: ●High-grade powder high-speed steel and special coating improve durability. ●The unique blade shape improves chip removal and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang ensures good supply of water-soluble cutting oil. ●Ideal for water-soluble cutting oil processing. Applications: ●For through hole processing. ●Workpiece material: low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, tool steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal dimensions: M6 ● Pitch (mm): 0.75 ● Thread length (mm): 15 ● Total length (mm): 100 ● Shank diameter (mm): 6 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 5.33 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Length under the neck (mm): 30 ● Shank length (mm): 40 ● Length of square shank section (mm): 7 Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
