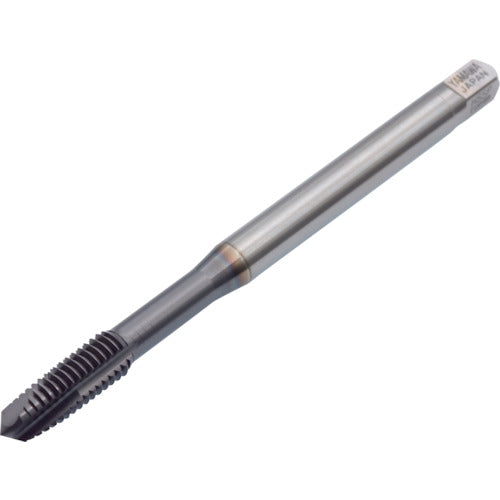

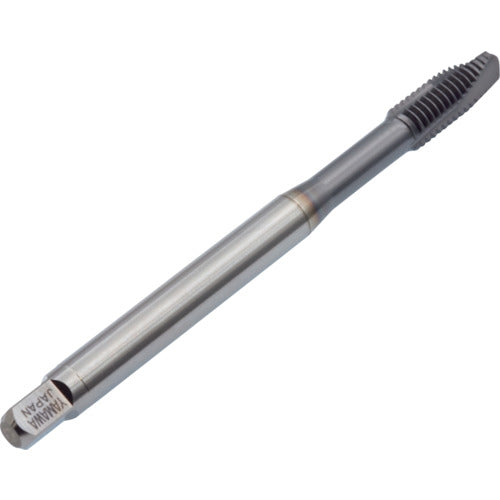

Yamawa Z-PRO Coated Point Tap VUPO P3 M5X0.5 VUPO-P3-M5X0.5+15 1 piece

Catalog number: VUPO-P3-M5X0.5+15 Features: ●High-grade powder high-speed steel and special coating for improved durability. ●The unique blade shape improves chip removal and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang ensures good supply of water-soluble cutting oil. ●Ideal for water-soluble cutting oil processing. Applications: ●For through hole processing. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, tool steel. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M5 ● Pitch (mm): 0.5 ● Thread length (mm): 9 ● Total length (mm): 70 ● Shank diameter (mm): 5.5 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 4.56 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Neck length (mm): 25 ● Shank length: 40mm ● Length of square shank section: 7mm Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
