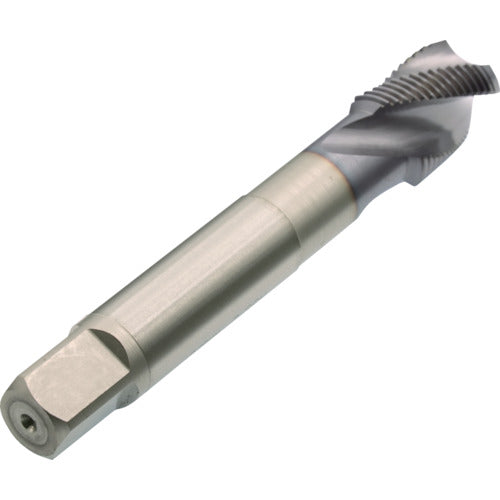

Yamawa Z-PRO Coated Spiral Tap for Pipe Taper Threads AUSP RC (PT) 1/2-14 AUSP-RC-1/2-14 1 piece

Catalog number: AUSP-RC-1/2-14 Features: ●The total length is set to the appropriate tool overhang amount, and chips can be prevented from interfering with the holder. ●The unique blade shape and special coating provide good internal thread surface and tool life. Applications: ●Cutting materials: Stainless steel, alloy steel, high carbon steel, medium carbon steel, low carbon steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: Conforms to ISO standards ●Nominal size: 1/2 ●Number of threads: 14 ●Thread length (mm): 26 ●Total length (mm): 125 ●Shank diameter (mm): 18 ●Shank square section (mm): 14 ●Pilot hole diameter (mm): 17.6 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Coating ●Length to reference diameter (mm): 20.5 ●Number of grooves: 4 Material/Finish: ●High-speed tool steel (HSS)
