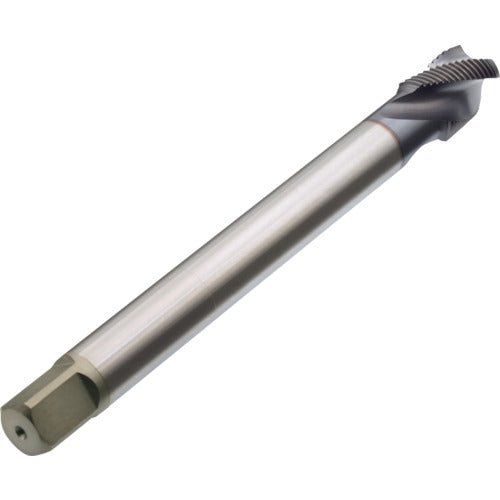

Yamawa Z-PRO Coated Spiral Tap for Pipe Taper Threads AUSP RC (PT) L150 3/8-19 AUSP-RC-150-3/8-19 1 piece

Catalog number: AUSP-RC-150-3/8-19 Features: ●Proper tool overhang ensures good chip removal. ●The unique blade shape and special coating provide good internal thread surface and tool life. Applications: ●For blind/through hole machining. ●Cutting materials: Stainless steel, alloy steel, high carbon steel, medium carbon steel, low carbon steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Nominal size: 3/8 ●Thread length (mm): 21 ●Total length (mm): 150 ●Shank diameter (mm): 14 ●Shank square section (mm): 11 ●Pilot hole diameter (mm): 14.4 ●Number of threads: 19 ●Number of engaging threads: 2.5 ●Machining thread: Tapered thread ●Surface treatment: TiCN coating ●Length to reference diameter (mm): 15.4 ●Number of grooves: 3 Material/Finish: ●High-speed tool steel (HSS)
