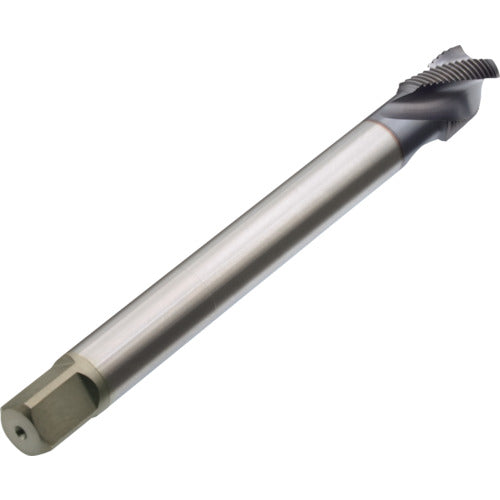

Yamawa Z-PRO Coated Spiral Tap for Pipe Taper Threads AUSP RC (PT) L200 1-11 AUSP-RC-200-1-11 1 piece

Catalog number: AUSP-RC-200-1-11 Features: ●Proper tool overhang ensures good chip removal. ●The unique blade shape and special coating provide good female thread surface and tool life. Applications: ●For blind/through hole machining. ●Cutting materials: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Nominal size: 1 ●Number of threads: 11 ●Thread length (mm): 33 ●Total length (mm): 200 ●Shank diameter (mm): 26 ●Shank square section (mm): 21 ●Counterbore diameter (mm): 29.3 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 threads ●Surface treatment: TiCN coating ●Length to reference diameter (mm): 26.0 ●Number of grooves: 4 ●Number of grooves: 4 ●Shank length: 70mm ●Length of shank square section: 24mm Material/Finish: ●High-speed tool steel (HSS)
