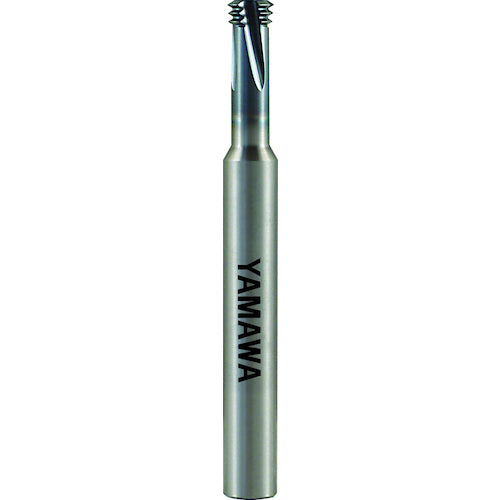

Yamawa Z-PRO Premium Thread Mill for Heat-Resistant Alloys PRML TI 4.0P0.75 PRML-TI-4.0P0.75 1 piece

Catalog number: PRML-TI-4.0P0.75 Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Ideal for processing heat-resistant alloys. ● Since cutting is performed on the first ridge, the female thread is less likely to taper after processing, making it highly accurate. ● During cutting, the tool is less burdened and has a long life. ● The tool rotates left, one-pass cut finish, and processes from top to bottom to reduce cutting resistance. Applications: ● Workpiece: For titanium alloys and stainless steel. Specifications: ● Nominal size: M4 ● Pitch (mm): 0.75 ● Blade diameter (mm): 4 ● Blade length (mm): 2.3 ● Total length (mm): 60 ● Number of blades (pieces): 3 ● Shank diameter (mm): 6 ● Neck length (mm): 14 ● Surface treatment: Coating ● Minimum processing diameter (mm): 6 ● Left blade Material/Finish: ● Ultra-fine grain carbide alloy (HF)
