It is made of cast steel, so it is very durable.
The main body and the slide are made parallel to each other.

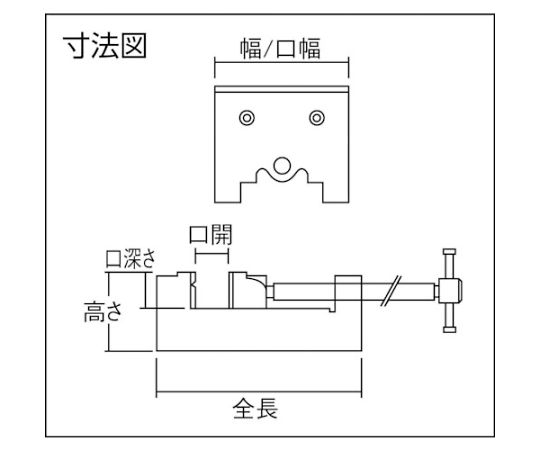

Can be used vertically or horizontally. Total length (mm): 155
- Width (mm): 65
- Height (mm): 61
Mouth width (mm): 65
Mouth opening (mm): 65
Mouth depth (mm): 31
Clamping force (kN): 12
Type: Yankee vice
Installation dimensions (mm): 154 x 65
Mounting dimensions (mm) G: 154
Mounting dimensions (mm) H: 65
Material/Finish: Body/Cast iron
Note: No nozzle parts are provided as the height can be adjusted after the nozzle is attached.
Country of Origin: Taiwan
Code number: 125-7773
