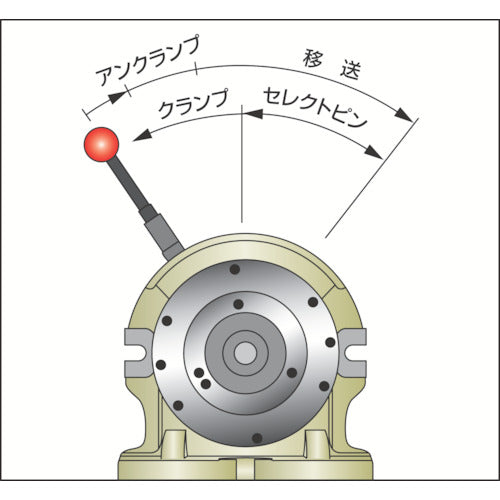

Catalogue number: DMB90-24 Features: ●The patented one-touch system automatically completes everything from indexing to clamping with one stroke of the lever, doubling efficiency. ●The indexing can be changed by simply inverting the select pin with a screwdriver. ●Very useful for unequal division. Applications: ●Manual type single-function indexing table. Specifications: ●Table diameter (mm): 132 ●Number of divisions: 2, 3, 4, 6, 8, 12, 24 equal divisions ●Indexing accuracy: Within 60 seconds ●Compatible chucks: #4, #5 ●Vertical and horizontal compatible type
