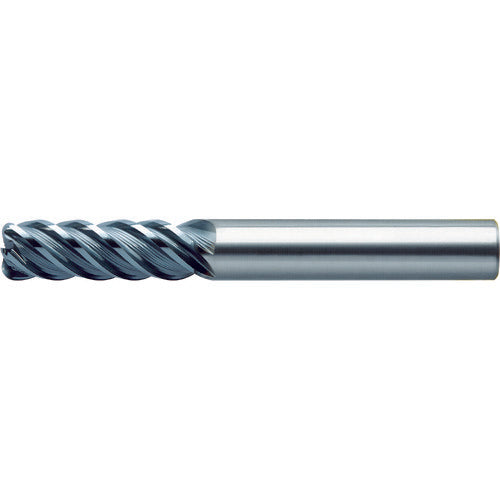

Union Tool Carbide End Mill Radius φ6 x Corner Radius R0.5 x Blade Length 12 CXRS5060-05-1200 1 piece

Catalog number: CXRS5060-05-1200 Features: ● Compatible with a wide range of work materials from carbon steel to hardened steel (55HRC)! ● Unequal division, unequal lead shape, and positive rake angle blade shape enable high-efficiency machining by side machining! ● Seamless corner R shape dramatically reduces cutting resistance! Specifications: ● Corner radius (mm): R0.5 ● Blade length (mm): 12 ● Total length (mm): 70 ● Shank diameter (mm): 6 ● Number of blades (pieces): 5 ● Surface treatment: UT COAT ● Number of blades: 5 ● Outer diameter (mm): 6 ● UT coating ● 5 blades ● High-efficiency radius end mill CXRS Material / Finish: ● Ultra-fine particle carbide alloy (Super MG) Caution: ● The shank taper angle is a guideline. ● If interference with the workpiece is required, be sure to measure it and check it. ● Be careful of contact between the shank and the workpiece.
