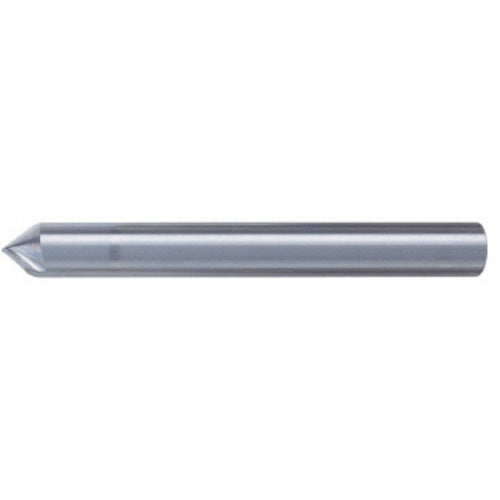

Union Tool Carbide Spiral Chamfering Cutter Taper φ1 x Blade Length 5.5 x Single Angle 45° SV2120 1 Piece

Catalog number: SV2120 Features: ● Carbide spiral chamfering cutter. ● Taper half angle is 45°. ● The outer blade is a twisted type, which reduces the occurrence of burrs compared to straight blade types. Applications: ● Compatible workpiece materials: carbon steel, alloy steel, pre-hardened steel, cast iron, aluminum alloy, graphite, copper, resin Specifications: ● Tip diameter (φD): 1.0 ● Blade length (l): 5.5 ● Total length (L): 75 ● Shank diameter (φd): 12 ● Made in an ISO9001 certified factory ● Made in an ISO14001 certified factory ● Twist angle 30° ● 2-blade spiral chamfering cutter Material/Finish: ● Ultra-fine particle alloy (Super MG)
