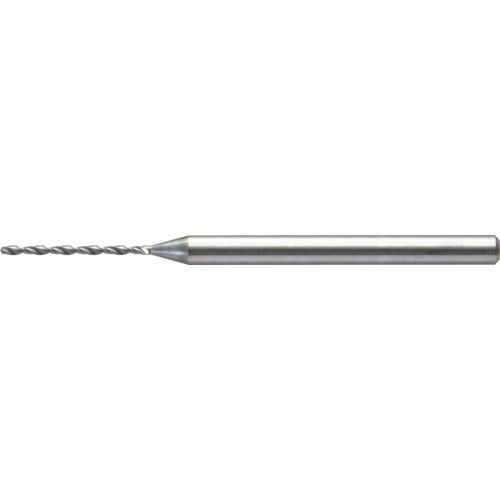

Union Tool Carbide Drill Coated Drill Long Blade φ0.7 x Blade Length 10.5 UTDLX2070-105 1 piece

Catalog number: UTDLX2070-105 Features: ● Carbide coated drill that balances performance and cost for mass production and prototype parts. ● Newly developed UT micro coating is used, which demonstrates high performance on low hardness materials. ● Newly designed drill shape and X-thinning improve resistance to sudden breakage and variation in the number of holes drilled. ● Tip angle is set to 130° to suppress burr height in through holes. ● Deep holes can be drilled with high precision due to groove length 15 times the cutting diameter. Applications: ● Workpiece: Alloy steel, aluminum alloy, general structural rolled steel, carbon steel, copper alloy, pre-hardened steel, hardened steel (hardness 45HRC or less). Specifications: ●Blade diameter (mm): 0.7 ●Groove length (mm): 10.5 ●Total length (mm): 45 ●Shank diameter (mm): 3 ●Surface treatment: UT micro-coating ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory ●UT micro-coating ●Twist angle 30° ●2-blade Unimax drill long blade Material/Finish: ●Ultrafine particle alloy (Super MG) Note: ●Compatible workpiece material: Hardened steel (Please consult us separately for machining high-hardness materials of 45HRC or higher.)
