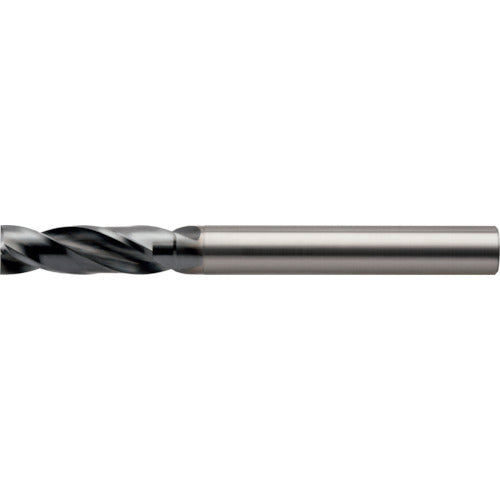

Union Tool Carbide 2-Blade Flat Drill, Diameter 9.5 x Groove Length 19 x Total Length 90, UTDF2950-190, 1 Piece

Catalog number: UTDF2950-190 Features: ●The 180° tip angle design allows for hole drilling in a variety of applications that would be difficult with a normal drill. ●The 30° twist angle provides excellent chip evacuation and achieves highly efficient and stable hole drilling. ●Thinning shape improves chip evacuation and sharpness. ●The double margin provides a guide effect on the inner wall of the hole, allowing for stable hole drilling of non-flat shapes. Applications: ●Compatible workpiece materials: general structural rolled steel, carbon steel, alloy steel, cast iron, aluminum alloy, pre-hardened steel Specifications: ●Blade diameter (mm): 9.5 ●Groove length (mm): 19 ●Total length (mm): 90 ●Shank diameter (mm): 10 ●Twist angle (°): 30 ●Outer diameter (mm): 9.5 ●Surface treatment: UT COAT ●Unimax Drill UTDF ●2-blade ●UT coating ●30° twist Material/Finish: ●SuperMG (ultrafine grain carbide alloy)
