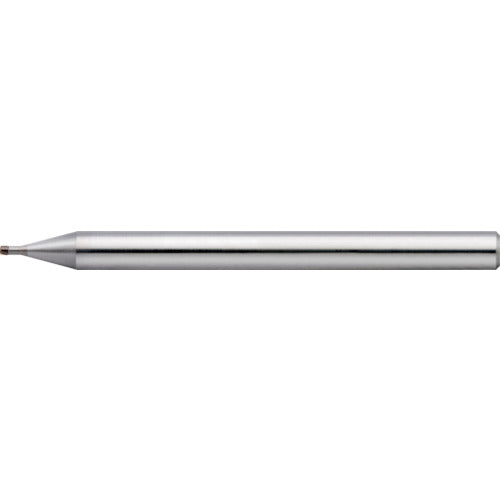

Union Tool 2-blade high-grade long neck radius outer diameter 0.5 x CR 0.01 x effective length 1 CBN-LRF2005-001010 1 piece

Catalog number: CBN-LRF2005-001010 Features: ● Adopts cBN material, which is ideal for machining high-hardness materials, and improves the blade shape to achieve high precision and long life. ● Suppresses damage when machining high-hardness materials. ● Outer diameter tolerance: -0.008mm. ● Achieves high-precision corner R. ● Adopts high-precision shank diameter tolerance (0/-0.004mm). Uses: ●Compatible workpiece materials: Hardened steel (up to 55HRC) (up to 60HRC) (up to 68HRC), pre-hardened steel Specifications: ●Blade diameter (mm): 0.5 ●Corner radius (mm): 0.01 ●Blade length (mm): 0.3 ●Total length (mm): 50 ●Shank diameter (mm): 4 ●Number of blades (pieces): 2 ●Surface treatment: Non-coat ●Effective length (mm): 1 ●Number of blades: 2 ●Outer diameter (mm): 0.5 ●Union Tool 2-blade high-grade long neck radius Outer diameter 0.5 x corner radius R 0.01 x effective length 1 x blade length 0.3 Material/Finish: ●CBN Note: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and confirm it. ●Be careful of contact between the shank and the workpiece.
