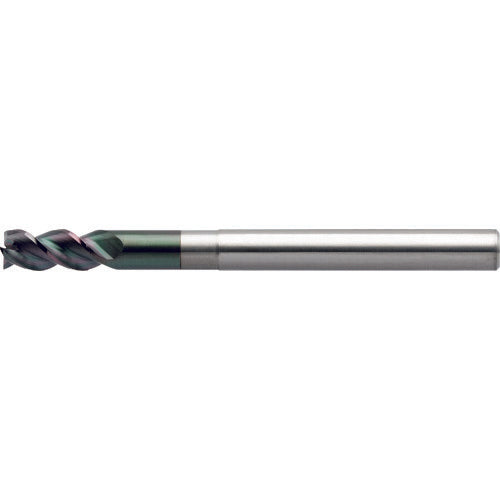

Union Tool DLC Coated Aluminum 3-Blade High Efficiency Long Neck Square End Mill DLC-AZS3050-250 1 Piece

Catalog number: DLC-AZS3050-250 Features: ●Z-cutting is possible on solid workpieces, shortening the process of drilling pilot holes. ●By adopting a 45° twist, excellent chip removal is achieved. ●The blade shape designed specifically for aluminum significantly reduces burrs, and the use of a small flat land significantly reduces pitching at the tip. Applications: ●Compatible workpiece materials: aluminum alloys, copper, resin Specifications: ●Blade diameter (mm): 5 ●Blade length (mm): 10 ●Neck length (mm): 25 ●Shank diameter (mm): 6 ●Number of blades (pieces): 3 ●Total length (mm): 70 ●Surface treatment: DLC ●Outer diameter tolerance 0/-0.015 ●DLC coating ●Twist angle 45° ●3 blades ●Long-neck square end mill for aluminum machining Material/Finish: ●Ultra-fine particle carbide alloy (Super MG) Note: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check it. ● Be careful not to let the shank come into contact with the workpiece. ● To prevent the tip of the blade from vibrating, do not chuck the shank if it has coating on it.
