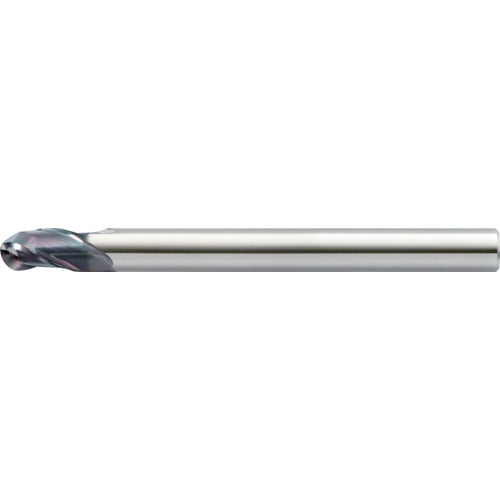

UNION TOOL DLC Coated 3-Blade Ball End Mill DLC-CFB R5 x Blade Length 15 x Total Length 100 x Shank Diameter 10 DLC-CFB3100-1500 1 Piece

Catalog number: DLC-CFB3100-1500 Features: ●Three blades provide amazing high feed rates. ●Shortened rough machining time. ●By using DLC, excellent resistance to adhesion and wear is achieved. ●Deep cuts are possible, allowing for highly efficient machining even in shapes where the feed rate cannot be increased. ●Three blades are unequal in spacing to suppress vibration. ●Three grooves at the tip provide excellent chip removal and outstanding surface finish. ●(Excluding R0.75 or less) Application: ●Compatible workpiece materials: aluminum alloy, copper, resin Specifications: ●Ball radius (mm): R5 ●Blade length (mm): 15 ●Total length (mm): 100 ●Shank diameter (mm): 10 ●Number of blades (pieces): 3 ●Surface treatment: DLC ●Number of blades: 3 ●3-blade DLC For aluminum machining ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory Material/Finish: ●SuperMG Caution: ●The shank taper angle is a guideline. ●If you are concerned about interference with the workpiece, be sure to measure it and check. ●The outer diameter of the tool may be smaller than the shank diameter. ●Be careful of contact between the shank and the workpiece.
